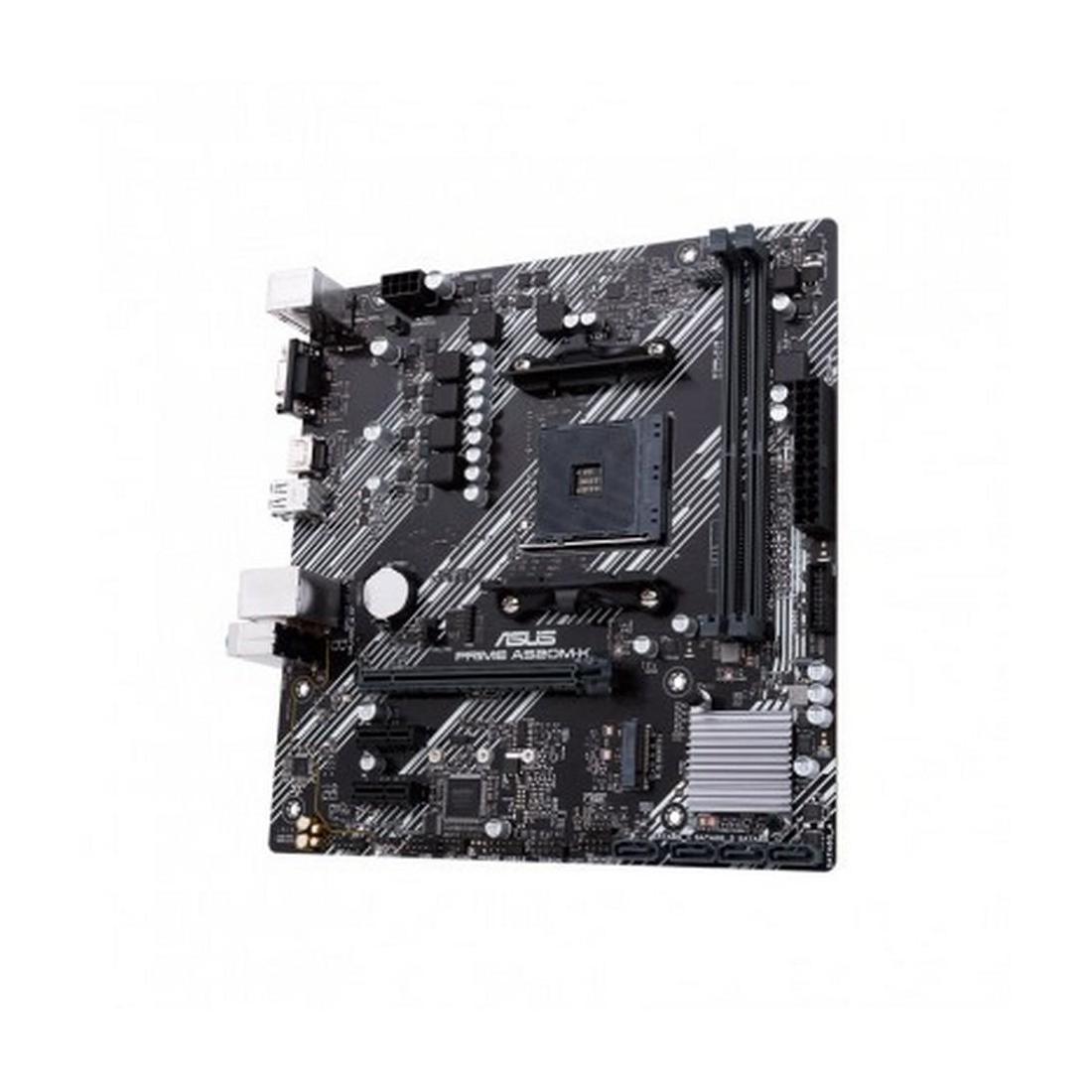

Placas base PLACA BASE ASUS PRIME A520M-K AM4 MATX 2XDDR4

Procesador

• AMD Socket AM4 for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors

Chipset

• AMD A520 Chipset

Memoria

• 2 x DIMM, Max. 64GB, DDR4 4600(O.C.)/4400(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*
• Dual Channel Memory Architecture

Slots

• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• 2 x PCIe 3.0 x1 slots

Gráficos

• 1 x D-Sub
• 1 x HDMI 2.1(4K@60HZ)

Almacenamiento

• M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
• 4 x SATA 6Gb/s ports
• Support RAID 0, 1, 10

Conectores USB

• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

• Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

Conectividad y redes

• 1 x Realtek RTL8111H 1Gb Ethernet

Conectores internos

• 1 x 4-pin CPU Fan header
• 1 x 4-pin Chassis Fan header
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x M.2 slot (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Conectores traseros

• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x D-Sub port
• 1 x HDMI port
• 1 x Realtek RTL8111H 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo port

Factor de forma

• mATX Form Factor (22.6x22.1 cm )
